British Utility Patent 1,363,777 (GB1363777A)

JavaScript disabled or not supported

It appears you have prevented JavaScript from running in your web browser or are using a web browser that does not support JavaScript. Admiral Shark's Keyboards presently requires JavaScript for quality-of-life features like switching between light/dark mode, navigating via title or image and copying search query links, and is necessary for the keyboard matrix simulators, keyboard property modals, interactable slideshows and image size optimisation. Please consider enabling JavaScript or using a web browser that supports it for a fully-featured and correctly working experience. If you have suggestions for reducing JavaScript dependency, feel free to let me know.

Provided by the ASK Keyboard Patents database

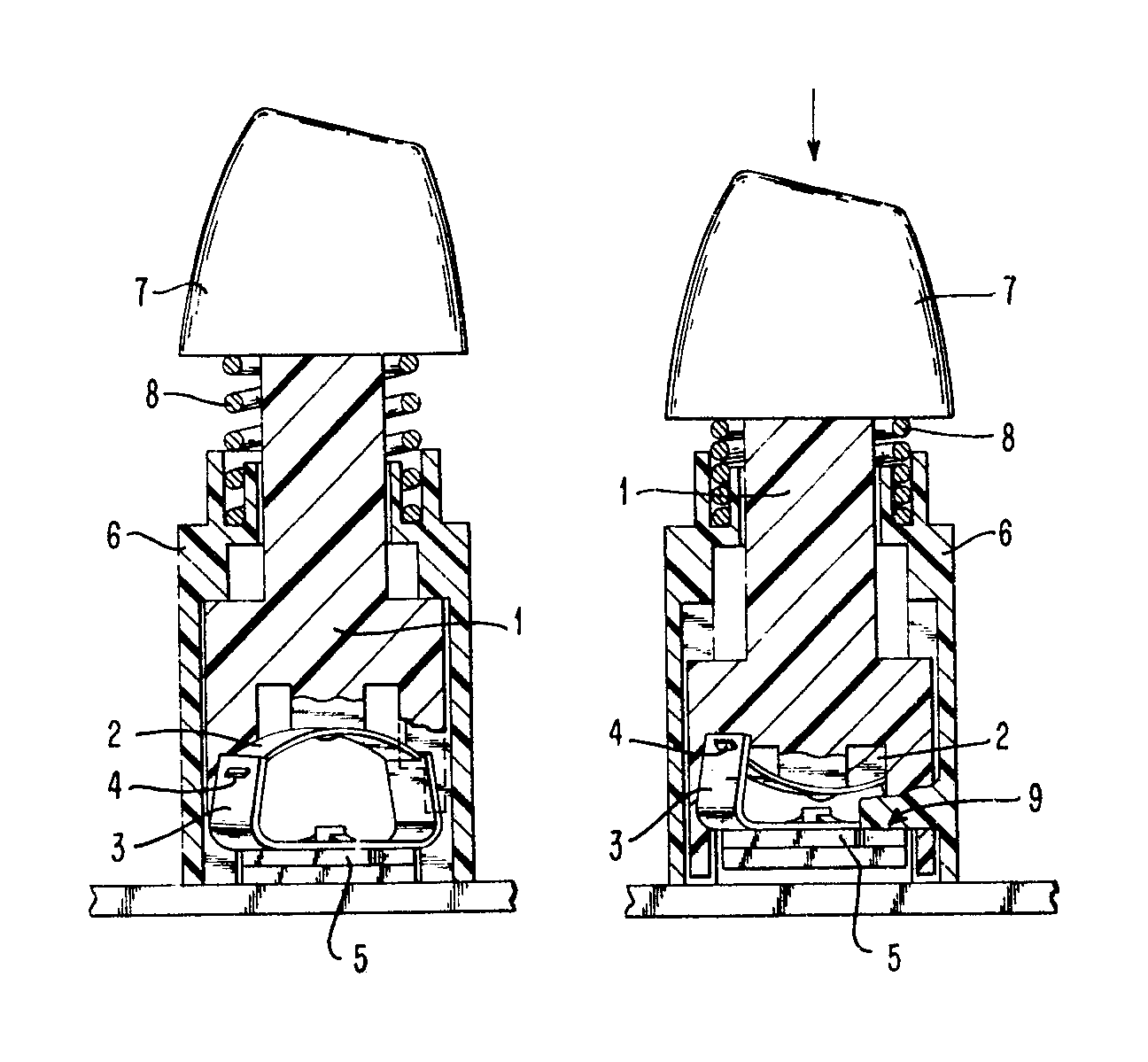

Patent diagrams of IBM's toggle switch at rest (left) and pressed (right)

Applied 21st August 1972

Published 14th August 1974

More informaion

Name	Toggle mechanism
Inventors	Richard H. Harris, Robert J. Wolfrom
Assignees	IBM
Description	An invention of a keyswitch that uses a cantilever snap mechanism to provide an actuator for a capacitance-sensing PCB. The mechanism is a leaf spring and a blade spring coupled together; the former is bent to push a capacitive plate towards at rest and then snaps to an inverted position to lift the plate when force is applied. This was implemented as the IBM beam spring used on all Model B family keyboards.
