Japanese Utility Patent 280,929 (JPH0280929U)

JavaScript disabled or not supported

It appears you have prevented JavaScript from running in your web browser or are using a web browser that does not support JavaScript. Admiral Shark's Keyboards presently requires JavaScript for quality-of-life features like switching between light/dark mode, navigating via title or image and copying search query links, and is necessary for the keyboard matrix simulators, keyboard property modals, interactable slideshows and image size optimisation. Please consider enabling JavaScript or using a web browser that supports it for a fully-featured and correctly working experience. If you have suggestions for reducing JavaScript dependency, feel free to let me know.

Provided by the ASK Keyboard Patents database

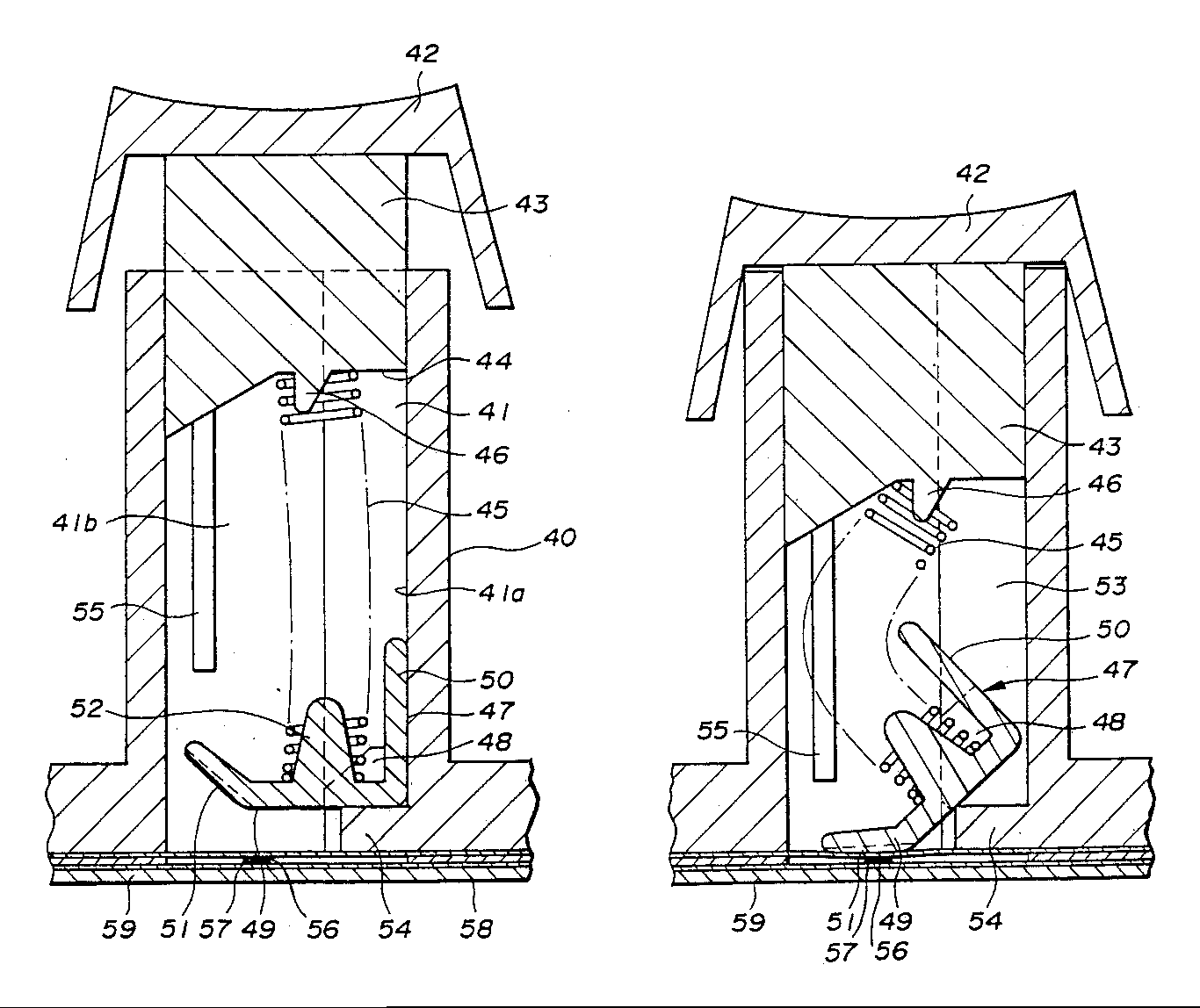

Patent diagrams of Alps' spring loaded push-button switch having predictable switching time despite varying spring characteristics at rest (left) and pressed (right)

Applied 12th December 1988

Published 21st June 1990

More informaion

Name	Spring loaded push-button switch having predictable switching time despite varying spring characteristics
Inventors	Toshimasa Matsui
Assignees	Alps
Description	An invention of a membrane-diven buckling spring keyswitch designed to be lower profile and use an integrated slider compared to other buckling spring designs such as those from IBM (US4118611A, US4528431A). Compared IBM's designs, the spring notably requires a lateral push to buckle rather since it is too short to buckle naturally. This was implemented as Alps buckling springs, which uses an Alps mount compatible slider and were employed on Alps SM-101 ODM keyboard design and Sega TeraDrive Keyboard (HTR-2106).
