U.S. Design Patent 344,724 (USD344724S)

JavaScript disabled or not supported

It appears you have prevented JavaScript from running in your web browser or are using a web browser that does not support JavaScript. Admiral Shark's Keyboards presently requires JavaScript for quality-of-life features like switching between light/dark mode, navigating via title or image and copying search query links, and is necessary for the keyboard matrix simulators, keyboard property modals, interactable slideshows and image size optimisation. Please consider enabling JavaScript or using a web browser that supports it for a fully-featured and correctly working experience. If you have suggestions for reducing JavaScript dependency, feel free to let me know.

Provided by the ASK Keyboard Patents database

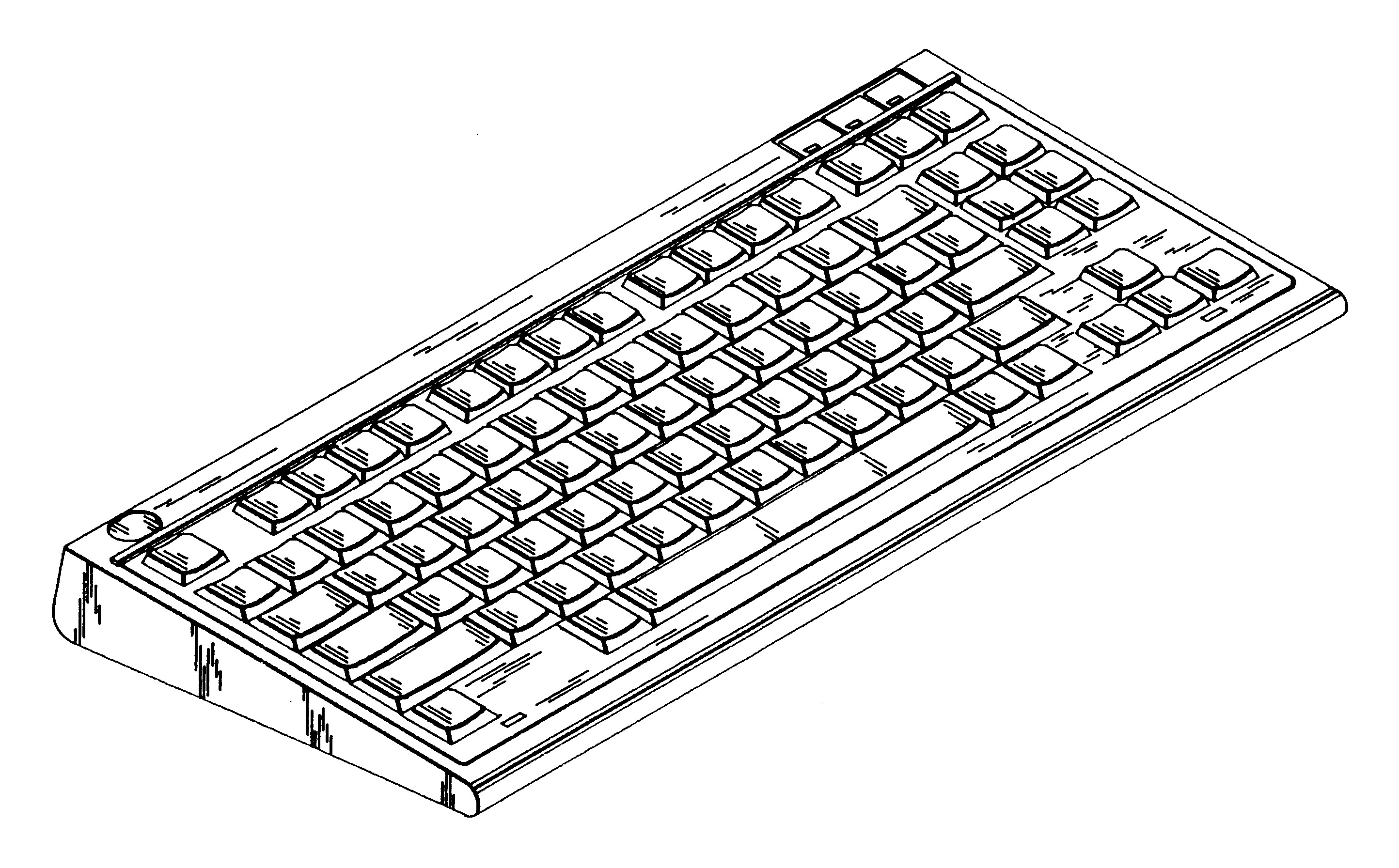

A patent diagram depicting IBM's keyboard from a front-left perspective

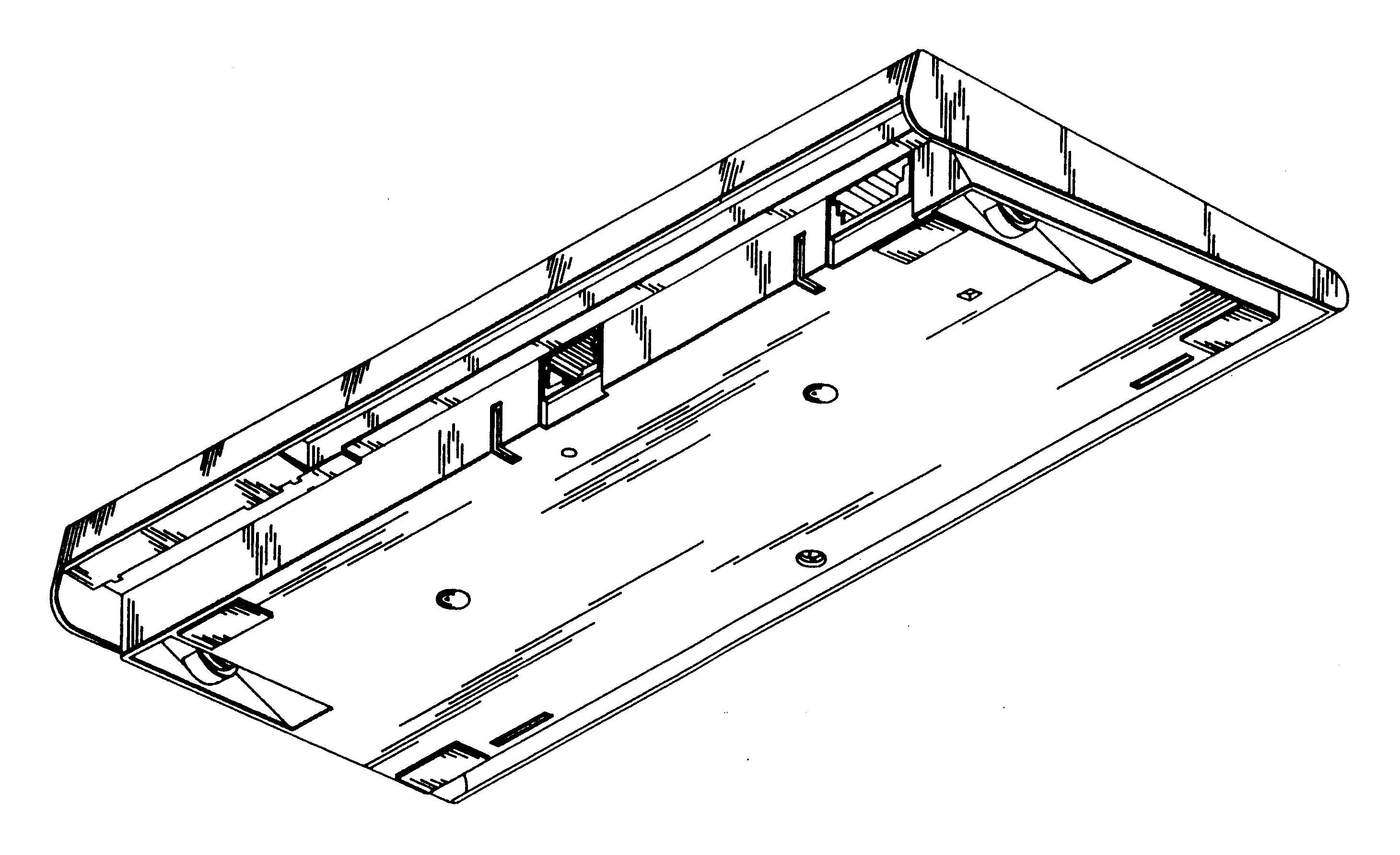

A patent diagram depicting IBM's keyboard from a bottom-right perspective

Applied 10th December 1991

Published 1st March 1994

Expired 1st March 2008

More informaion

Name	Keyboard
Inventors	Thomas E. Pangburn
Assignees	Lexmark
Description	An ornamental design depicting the original IBM Space Saver Keyboard (Model M4).
