IBM Numeric Keypad for IBM PS/2 L40SX

Provided by the ASK Keyboard Directory

Admiral Shark's Keyboards (CC BY-NC-SA 4.0)
Admiral Shark's Keyboards (CC BY-NC-SA 4.0)
[ASK]
[ASK]
[ASK]
[1]
[ASK]
1991 Q2Model M3 Numeric KeypadIBM buckling rubber sleeves (M3/M4 rod-actuated type)More info on this keyboard

eg, P/Ns 1396199, 1396571, 1396572, 1396573, 1396574

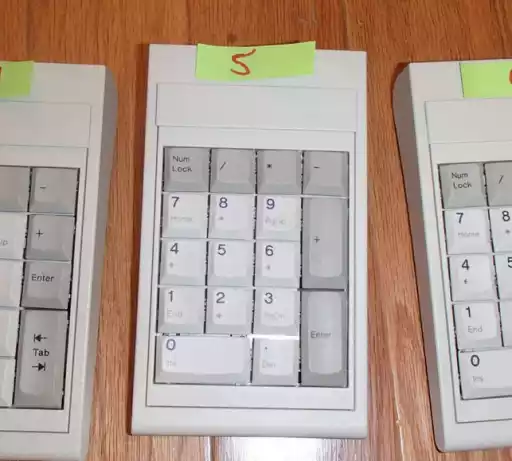

IBM-made 17-key numeric keypad option for the IBM 8543 PS/2 L40SX portable computer. It was the first discrete (not integrated into a larger system) device to use IBM buckling sleeve key-switches. It had a modular 8P8C to PS/2-like plug cable with a special pinout, a passthrough port for a PS/2 mouse and a hinged but removable cover.

Sources

ASK. Admiral Shark's Keyboards original content. License/note: CC BY-NC-SA 4.0.

  1. Dario @ Dario'sCope - donated photo.
