1983 Q2

Model F 3104/3178 Typewriter Base Keyboard IBM capacitive buckling springs More info on this keyboard

31XX-87 type Model F

eg, P/N 6052101

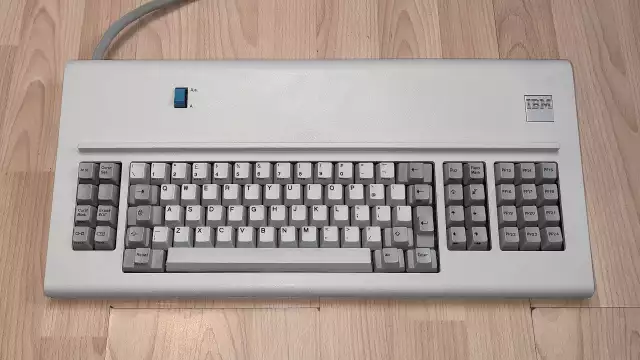

IBM-made 87-key, U.S. English only typewriter-style keyboard for the 3270-family IBM 3178 Model C3 Display Station. It is a part of the IBM Model F continuation of the IBM 3270's Base Keyboard lineage that began in the Model B era, specifically implementing the RPQ 8K1038 327X-87 type Model B Base Keyboard's layout originally for [at least] IBM 3278 Model 2 Display Stations. It has a solenoid-based clicker assembly and a blue monocase/dualcase switch (excluding Katakana). Compared to the similar C2 and C4 keyboards, the C3 keyboard has a 12-key combination adding machine style numeric keypad with 24 program-function legends.

Relations

Parent design

IBM 3104 Model B2/3178 Model C2 Typewriter Keyboard

Sources

ASK. Admiral Shark's Keyboards original content. License/note: CC BY-NC-SA 4.0.

ASK Keyboard Archive Photos - P/N 6052101 (1991, IBM-US) [accessed 2025-04-11]. License/note: saved from volatile eBay listing via WorthPoint, used under fair dealing.
