1991 Q4 Model M4 Space Saver Keyboard IBM buckling rubber sleeves (M3/M4 rod-actuated type)More info on this keyboard

W/ IBM grey oval badge

eg, P/N 1397451

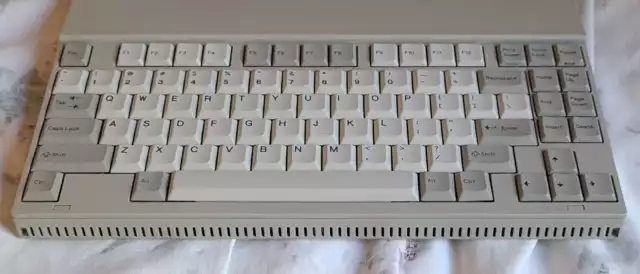

Lexmark-made 84-key tenkeyless keyboard for IBM Personal System/2 and compatible PCs. This keyboard is essentially just the IBM PS/2 L40SX Keyboard Assembly placed in its own cover set with a PS/2 controller card. It's intended to be used with a modular SDL to PS/2 cable and has a modular 10P10C port for an optional numeric keypad attachment option.

Relations

Derivative designs

IBM Space Saver Keyboard (w/ IBM blue oval badge)

Sources

ASK. Admiral Shark's Keyboards original content. License/note: CC BY-NC-SA 4.0.
